Next-Generation Gas Filtration System

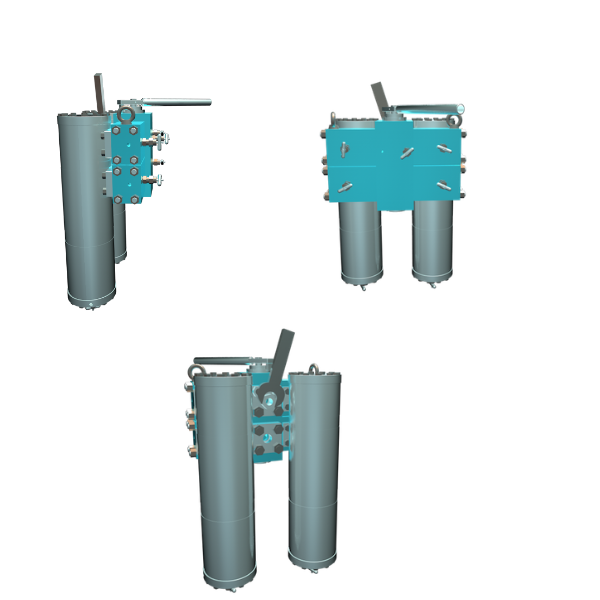

🔧 BLVF Modular Gas Filtration System BLVF series is a high-performance modular system designed for advanced gas filtration applications, offering multiple configurations to meet different pressure, temperature, and material requirements. 🔩 Product Variants: • BLVF • BLVF-TEF-HC-MF • BLVF-TEF-HC-MF/HT (high temperature version) • BLVF-HC • BLVF-HC-MF modular system for gas filtration 📏 Technical Specifications: • Sizes: 20–25–40 • Pressure range: up to 360 bar (depending on configuration) • Temperature range: up to 260°C (HT versions) • End connections: Welding neck (ASME B16.25 / B16.5) or NPT-F (ANSI B1.20.1), lateral or frontal options • Special connections available on request 🧱 Materials: • Bodies: ASTM A182 F316L, F51, 17.4PH, CW6MC, or on request • Trim: WCB + ENP, A105 + ENP, CF8, CF8M, Duplex, CA6NM • Seats & seals: PTFE, filled PTFE • Gaskets: Viton, Kalrez, graphite, silicone and other high-performance compounds 📋 Testing & Compliance: • MSS-SP61, FCI 70.2 • ASME B16.34 / ASME III / ASME BPVC • PED 2014/68/EU • IEC 61508 (SIL) • ISO 15848 (fugitive emissions) 🚀 Designed for demanding industrial gas filtration applications requiring safety, modularity, and high-pressure performance.
