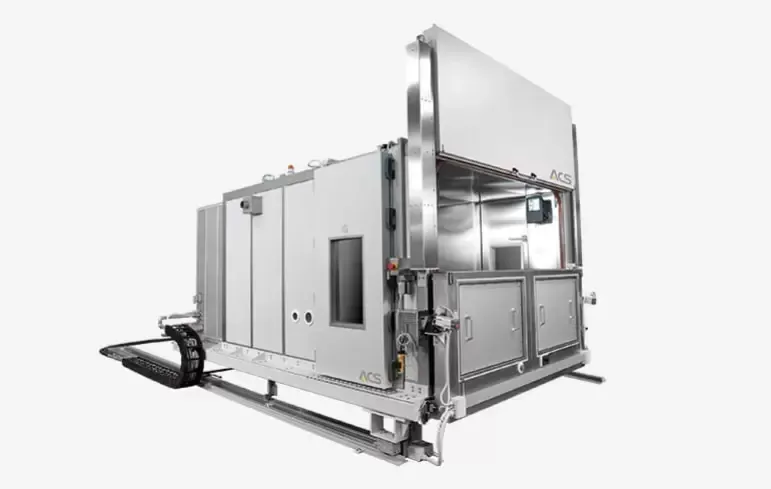

Premium Quality Performance Pedal Test Chambers

ACS Environmental Simulation Chambers – Custom Thermal Testing Solutions ✅ Over 60 years of expertise in designing customized environmental simulation systems ✅ High-precision thermal testing with advanced safety engineering ✅ Integrated automatic pedal shifting system for improved operation efficiency ✅ Designed to reduce operator exposure to moving parts and extreme temperatures ⚙️ Example of custom chamber configuration: • Internal dimensions: 2500 × 3000 × 2000 mm (L × D × H) • External dimensions: 3200 × 5100 × 2700 mm (L × D × H) • Temperature range: -40°C to +150°C • Controlled temperature change rates (IEC EN 60068-3-5 compliant, 500 kg load): – 1°C/min from +20°C to +150°C – 0.5°C/min from +20°C to -40°C 🔧 Key features: • Automatic cell movement system with fixed floor reference • Vertically sliding front door • Dual side service access doors • Front interface for hydraulic cyclic pedal systems 🚀 Built for reliable, safe, and fully customized environmental testing in demanding industrial applications.
