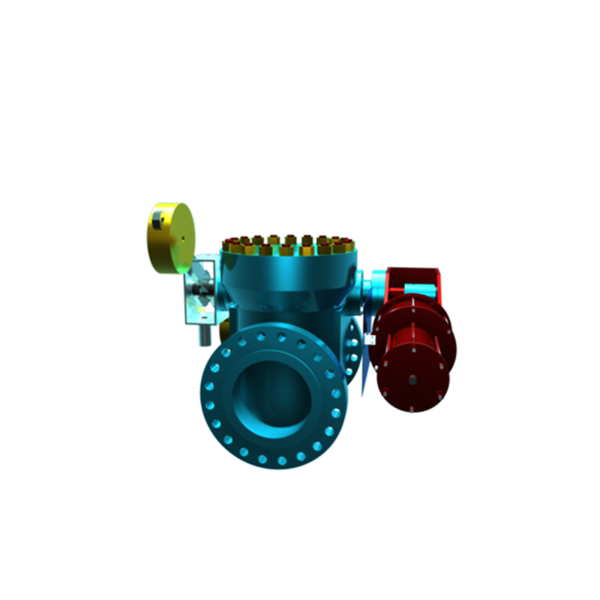

SWING CHECK – Built for High-End Reliability

✅ Designed in accordance with ASME B16.34, ASME III & ASME PV Code 8 standards ✅ Compliant with 2014/68/EU P.E.D. and ISO 15848 fugitive emission requirements ✅ Face-to-face dimensions per ASME B16.10 ✅ Pressure classes ANSI 150 / 300 / 600 / 900 for versatile applications ✅ Available sizes from 6" to 30" for industrial pipelines ✅ End connections: Flanged, Buttweld, ASME B16.5 / B16.47 / B16.25 ✅ Certified testing: API 6D, API 598, IEC 534, FCI 70.2, UNI EN 12266 ⚙️ Engineered for on-off service with metal seat sealing for high durability and leak resistance. ⚙️ Designed for actuator coupling via ISO 5211 (custom solutions available on request). ⚙️ Wide material selection including WCB, WC6, WC9 body options and stainless steel internals such as AISI 316, AISI 410, Nitronic 50. ⚙️ Advanced sealing options including graphite, Kalrez PTFE, Viton, silicone, and carbographite systems for demanding operating conditions. 🚀 Built for critical industrial applications where safety, reliability, and long service life are essential in high-pressure and high-temperature environments.
