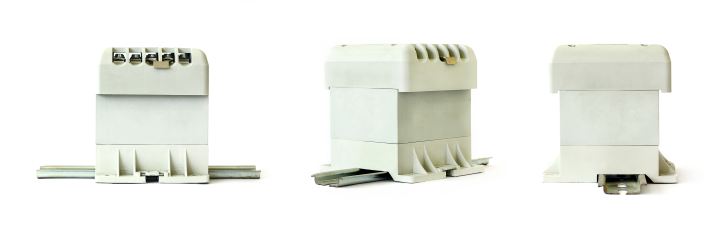

Isolating and safety single-phase transformers for screw or DIN bar installation – iP20 T1L

General Data Rated Input Voltage | 230-400±15 V Rated Output | T1L…A: 2X12 V – T1L…B: 2×115 V Rated Power | 50-75-100-160-200-250-300 VA Insulation Class | class F Temperature Class | class B Ambient Temperature | Ta=40°C Protection Degree | IP 20 Test Voltage | 4,2 KV/1′ Terminals | self-lifting screws Application Single-phase isolating (T1L…B) and safety (T1L…A) transformers suitable for DIN rail or floor screws installation. Multi-voltage input and output with protection degree IP20. Construction in accordance with the below standards: Standards CEI-EN 61558,2-4 and 2-6 – isolating and safety transformers IEC 61558,2-4 and 2-6
