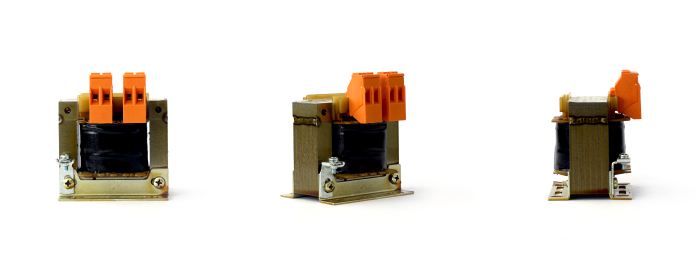

Low-voltage single-phase isolating and safety transformers – class F T1C

General Data Rated Input Voltage | 230-400 V or others upon request Rated Output | 24 V/115 V or others upon request Rated Power | 30-250 VA Insulation Class | class F Temperature Class | class F Ambient Temperature | Ta=40°C Protection Degree | IP 00 Test Voltage | 4,2 KV/1′ Terminals | terminal blocks Application Single-phase control, isolating and safety transformers designed combining reliable performance and cost-effectiveness. They are completely impregnated with resin and have faston or screw earth connection, 4 sqmm terminal blocks, input and output in the same side. Construction in accordance with the below standards: Standards CEI-EN 61558,2-4 – isolating transformers CEI-EN 61558,2-6 – safety transformers IEC 61558,2-4 and 2-6
