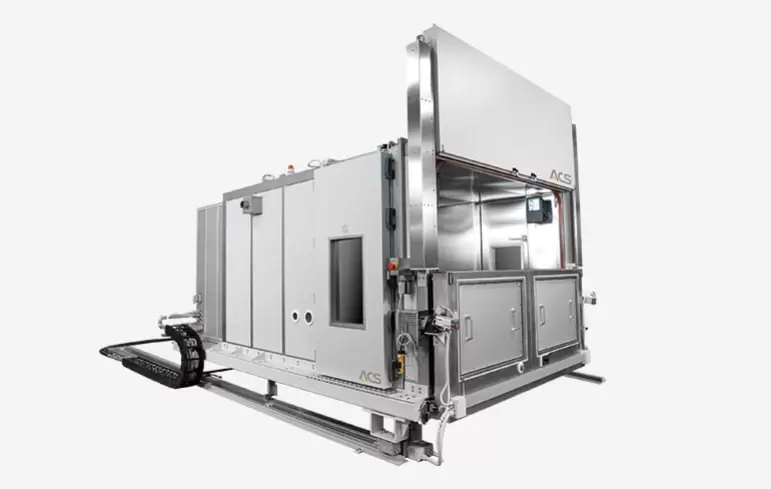

Pedal test chambers

ACS chambers can be integrated with an automatic pedal shifting system. Special safety measures have been specially designed to avoid risks related to operator exposure to moving parts and extreme temperatures. ACS is able to offer customized solutions thanks to its more than 60 years of experience in designing customized environmental simulation chambers, its technical know-how and the close attention given to the requests of all our customers. Example of a chamber built according to customer specifications. * Internal Dimensions: 2500x3000x2000 mm (LxDxH) * External Dimensions: 3200x5100x2700 mm (LxDxH) * Temperature range: -40°C / +150°C * Rate of temperature change, in accordance with IEC EN 60068-3-5 standards with 500 Kg steel specimen: - 1°C/min from +20°C to +150°C - 0.5°C/min from +20°C to -40°C FEATURES: * Automatic cell movement system with regard to the fixed floor * Vertically sliding front door * Service doors on both sides * Front panels for interface with hydraulic cyclic pedal actuation system
