Customized sand/dust test chambers

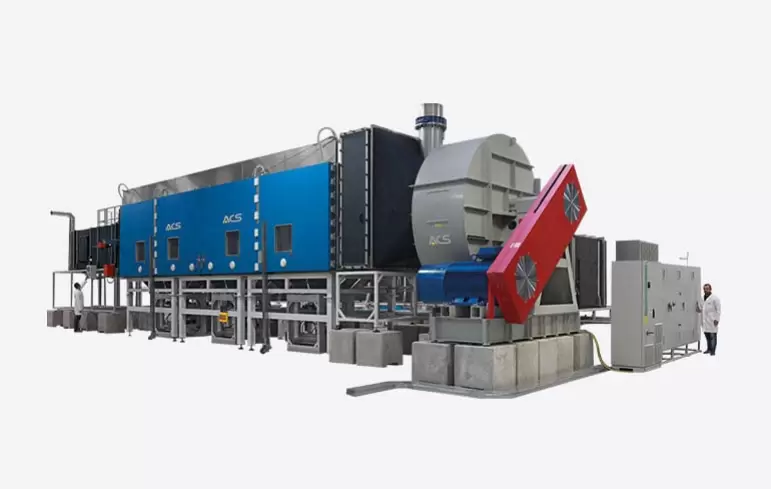

Products are exposed to several atmospheric agents and to changes in temperature and humidity during their service life. Sand also produces a high degree of deterioration. ACS chambers for sand and dust tests are able to reproduce all the conditions included in the standards that require continuous ventilation (DIN 40046, MIL-STD 331 AND MIL-STD 810 C), dust drop tests (DIN 40052) and tests with irregular whiff of compressed air (SAE J 575). In addition to the standard line, ACS is able to offer customized solutions thanks to its more than 60 years of experience in designing customized environmental simulation chambers, its technical know-how and the close attention given to the requests of all our customers. Example of a chamber customized according to the specifications requested by the customer. Dust and sand test chamber SD48000 MIL, for reliability tests and product certification in compliance with the following standards: * MIL STD 810G Method 510.5. Procedure I and II *RTCA DO-160G section 12.90 Sand and Dust * Outside dimensions: 20000 x 10000 x 5000 mm (LxDxH) * Maximum object test size: 1500 x 7500 x 1500 mm (LxDxH) * Chamber useful capacity: 48400 l. * Inside working dimensions: 10000 x 2200 x 2200 mm (LxDxH) * Application: reproducing the strong presence of sand/dust with wind effect Method MIL STD 810G 510.5. PROCEDURE I – BLOWING DUST * Temperature range: from ambient T to +70°C * Rate of temperature change: <3°C/min, from 0°C to +70°C * Relative humidity: <30% * Dust composition: Chinese red clay or silica flour * Dust concentration: 10.6 ±7 g/m3 (0.3 ±0.2 g/ft3). * Air speed: 1.5 to 8.9 m/s Method MIL STD 810G 510.5. PROCEDURE II – BLOWING SAND * Temperature range: from ambient T to +70°C * Temperature fluctuation (under stable conditions): ≤ ±1°C (over time) * Relative humidity: ≤30% * Sand composition: silica sand * Sand concentration: - 0.18 g/m3 -0.0/+0.2 g - 1.1±0.3 g/m3 - 2.2±0.5 g/m3 * Air speed: 18 to 29 m/s
