Customized altitude test chambers

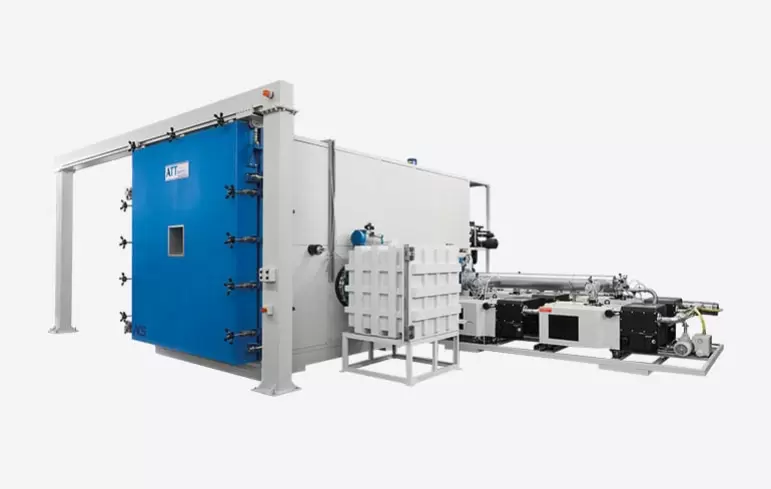

Climatic chambers for altitude tests are used to reproduce the operating conditions of components or products that operate in environments where the atmospheric pressure decreases over time. When carrying out tests in the aeronautics industry, an effective combined control of temperature and pressure must be guaranteed in order to simulate the exact altitude above sea level. Humidity control is also necessary in some cases. In addition to the standard line of altitude chambers, ACS can provide special chambers for high vacuum tests, combined vibration tests, icing tests, and vacuum shock tests, according to customer specifications or standards such as MIL-STD 810 G and RTCA-DO-160. Example of a chamber customized according to the specifications requested by the customer. Test: temperature, humidity, vacuum * Outside dimensions (chamber only): 2600x7800x3050 mm (LxDxH) * Inside working dimensions: 2000x6000x2000 mm (LxDxH) * Temperature range: -75°C / +150°C * Gradient (with inside load of 1600 kg): - 5°C/min from -65°C to +120°C - 5°C/min from + 120°C down to -65°C * Relative humidity range: 10% to 95% (Dew point range +2°C /+79°C) * Pressure range: from ambient pressure to 10 mbar * Special feature: rapid depressurization from ambient down to 45 mbar in 1 min. * Special standard requested: DEF STAN 00-35 CL9 severities B C Y E
