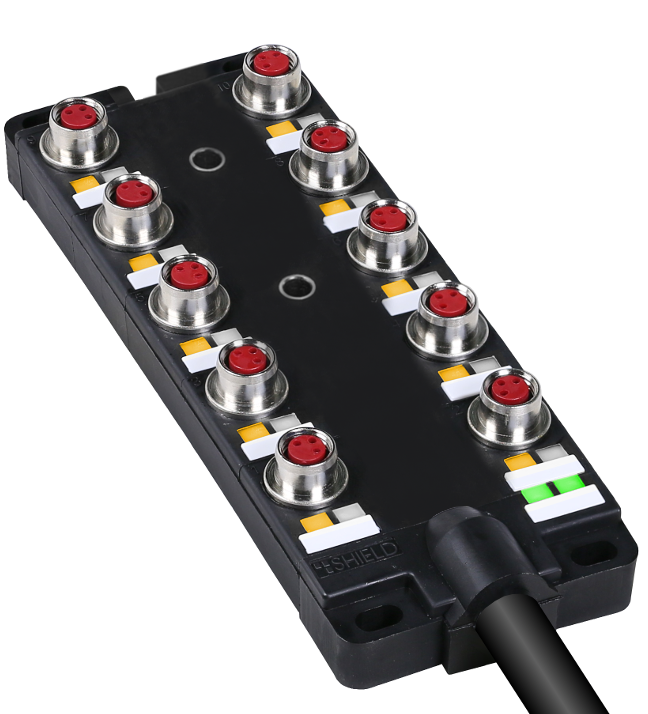

SB-K3520

Passive circuit code 03 standard - 1 signal with electronics with 1 led each socket Family SB distribution box - M8 A 3way 3pin Ø1,0 Configuration 2 rows - 5 modules - 10 sockets - 10 signals - 10 led - 1 power led Degree of protection EN IEC 60529 IP67 - (IP68 single application test) Body material polyurethane PUR - black BK - RAL 9004 - with transparent led cover Rated voltage 5..30 Vdc Max rated current @ 40 °C 8A common wires - 4A each socket - 2A each signal - 200W max power
