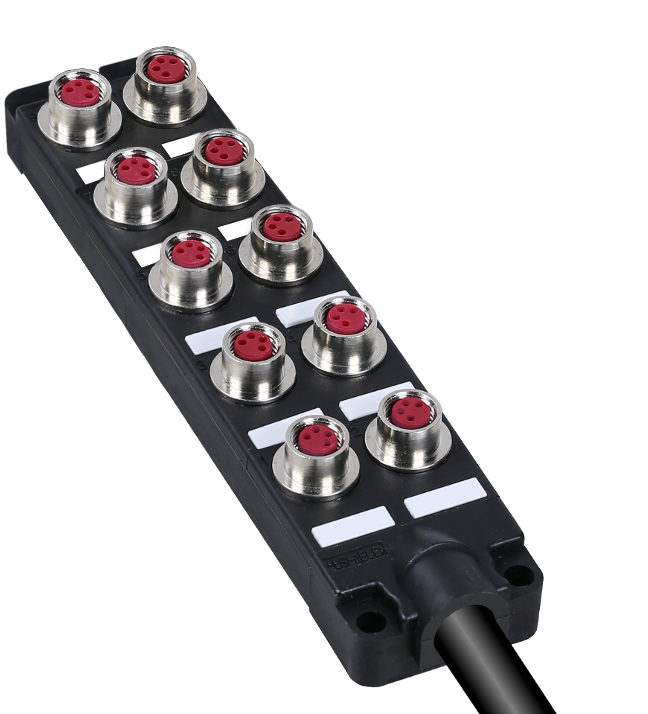

SB-F3510

Passive circuit code 02 - each socket - 2 signals without led Family SB-K distribution box - M8 A 4way 4pin Ø1.0 Configuration 2 rows - 5 modules - 10 sockets - 20 signals Degree of protection EN IEC 60529 IP67 - (IP68 single application test) Body material PUR polyurethane - black BK - RAL 9004 Rated voltage 60 Vdc - 50 Vac Max rated current @ 40 °C 8A common wires - 4A each socket - 2A each signal - 200W max power
