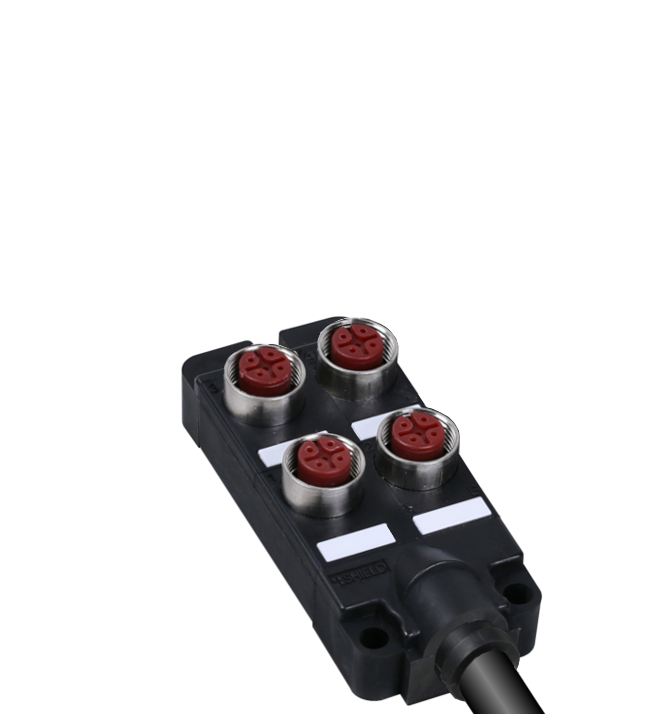

SB-F3017

Passive circuit code 02 - each socket - 2 signals without led Family SB distribution box - M12 A 5way 5pin Ø1,0 Configuration 2 file - 2 moduli - 4 prese - 8 segnali Degree of protection EN IEC 60529 IP67 - (IP68 single application test) Body material PUR polyurethane - black BK - RAL 9004 Rated voltage 1..125 Vdc Vac Max rated current @ 40 °C 8A common wires - 4A each socket - 2A each signal - 200W max power
