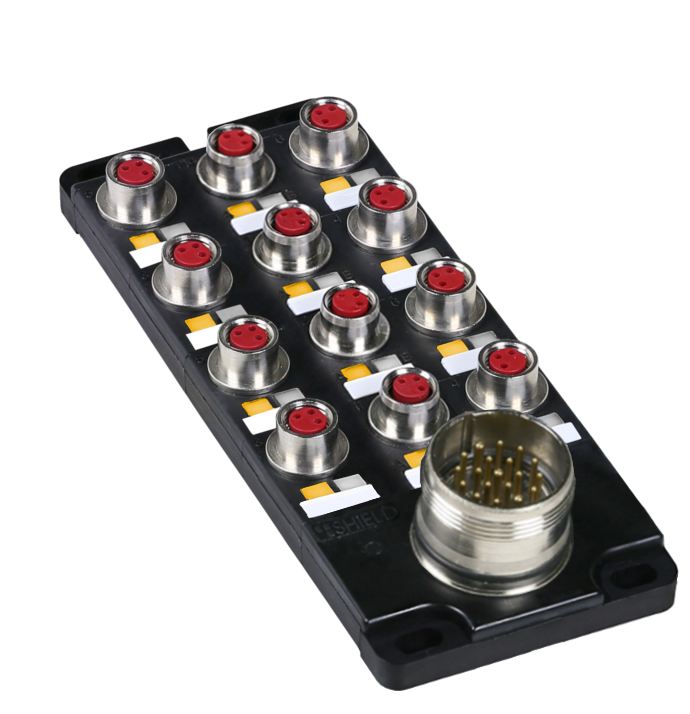

SC1084

Passive circuit code 03 standard - 1 signal with electronics with 1 led each socket Family SC-K distribution box - M8 A-coding 3way 3pin Ø1,0 Configuration 3 rows - 4 modules - 12 sockets - 24 signals - 24 led - 1 power led Degree of protection EN IEC 60529 IP67 - (IP68 single application test) Body material PUR polyurethane - black BK - RAL 9004 Rated voltage 1..30 Vdc Max rated current @ 40 °C 8A common wires - 4A each socket - 2A each signal - 200W max power Input with connector M23 - 19way - 3pin Ø 1,5+16pin Ø 1
