12415

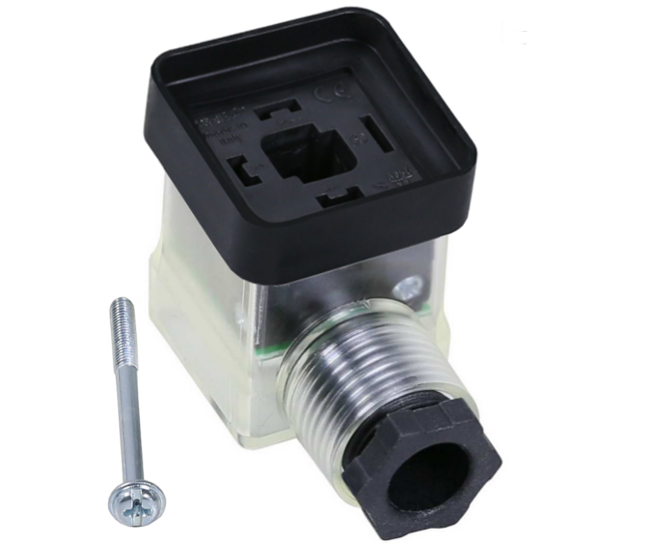

Style A - square female mm18 DIN EN175301-803 Material polycarbonate V0 - transparent Connection M16 - black Cable gland 4 holes for unipolar wires Central screw M3x36 TC Kombi H with partial thread washer iron type 4.8 - galvanizing Fe/Zn5c1A Gasket integrated to the contact carrier body, with additional protection Clamps in the insert 2 poles + 1PE Circuit components 1 diode in parallel + 1 unipolar led Rated voltage 10-50 Vdc Led color red Standard packaging bag with 1 disassembled piece
