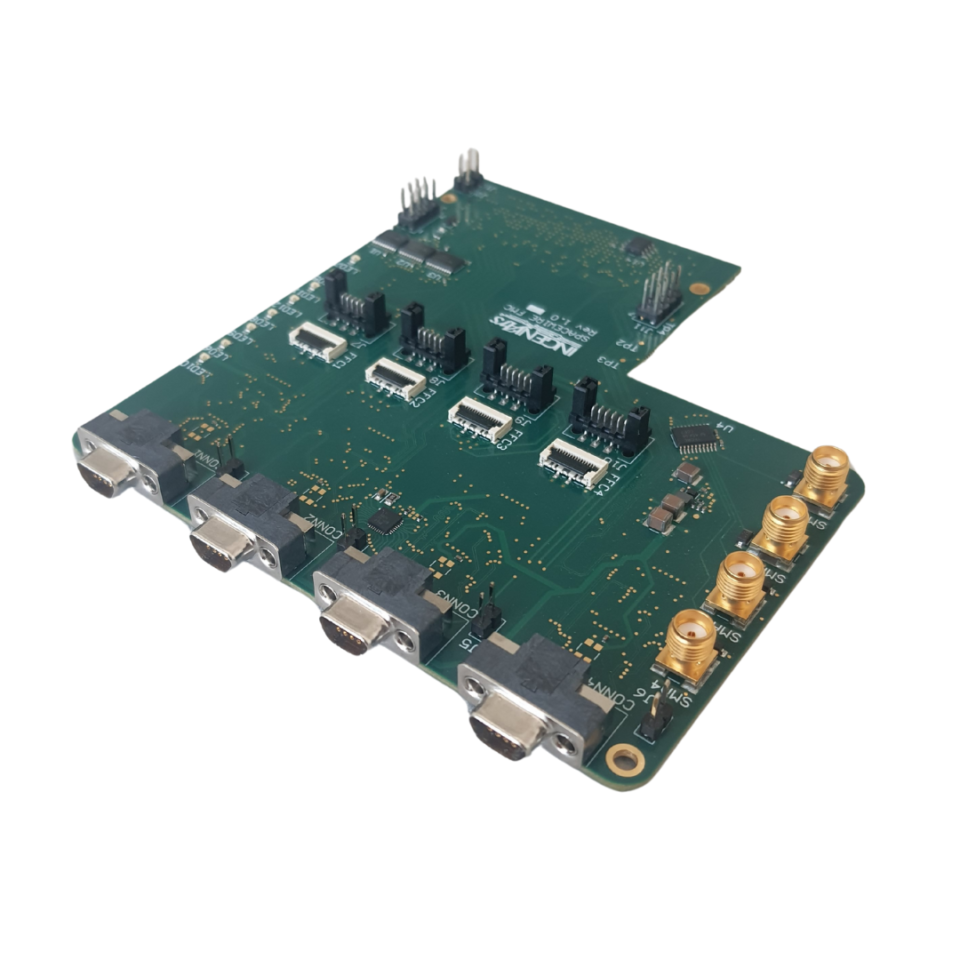

SpaceWire FMC

SpaceWire FMC provides 4 SpaceWire ports to implement 4 parallel SpaceWire links. In addition, SpaceWire FMC is equipped with 4x expansion connectors for flex-cable to expand the data ports provided, for example by plugging IngeniArs SpaceWire single port module. In such way, the board could provide up to 8 SpaceWire ports. SpaceWire FMC can be plugged into all FPGA boards equipped with the common FMC connector. Key features: 4x GPIO pins implemented on SMA connectors 4x expansion connectors to plug additional data ports such as IngeniArs SpaceWire single port module Easy integration into FPGA-based boards thanks to the standard FMC interface SpaceWire ports compliant with SpaceWire standard ECSS-E-ST-50-12C Rev 1 Onboard LVDS transceiver Tested up to 400 Mb/s LVDS I/O to FMC ensures good signal integrity even with long interconnections Other information: Technologies/Applications SpaceWire Competencies: PCB design
