High-Speed Serial Link FMC

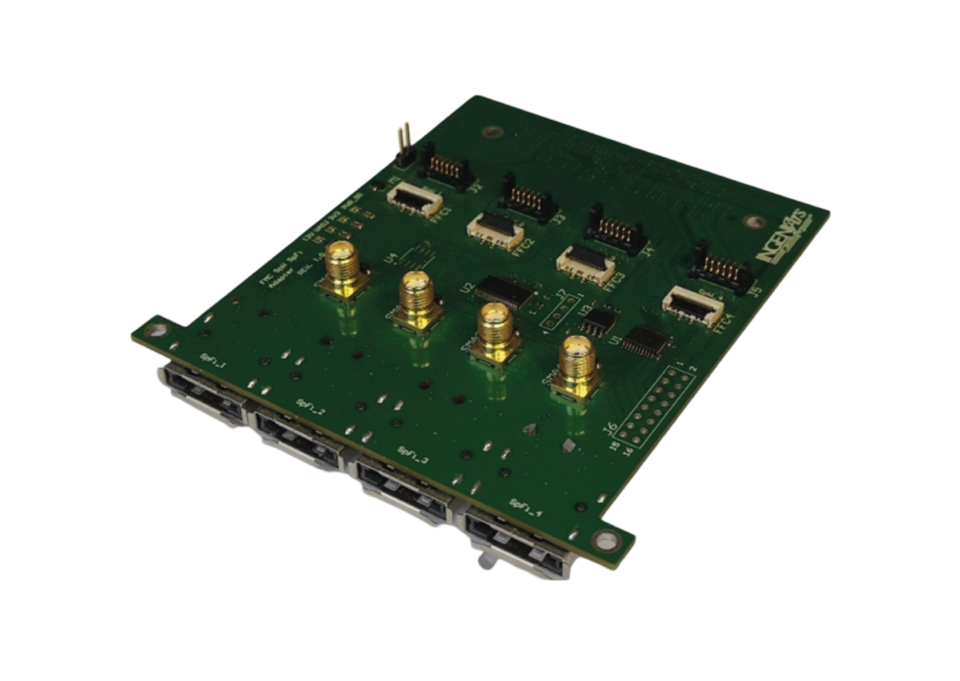

The High-Speed Serial Link (HSSL) FMC provides 4 eSATA ports that are used to implement 4 bi-directional High-Speed Serial Links. Such physical interfaces are used for HSSL commonly used in space applications such as WizardLink and SpaceFibre. Additionally, HSSL FMC is equipped with 4x expansion connectors for flex-cable to expand the data ports provided, for example by plugging IngeniArs SpaceWire single port module. In such way, the board could provide 4x HSSL ports + 4x SpaceWire ports. HSSL FMC can be plugged into all FPGA boards equipped with the common FMC connector. Key features: 4x HSSL bi-directional links implemented as eSATA ports HSSL ports tested up to 6.25 Gb/s 4x GPIO pins implemented on SMA connectors 4x expansion connectors to plug additional data ports such as IngeniArs SpaceWire single port module 16 pin GPIO header connector Easy integration into FPGA-based boards thanks to the standard FMC interface Other information: Technologies/Applications SpaceFibre SpaceWire Competencies: PCB design
