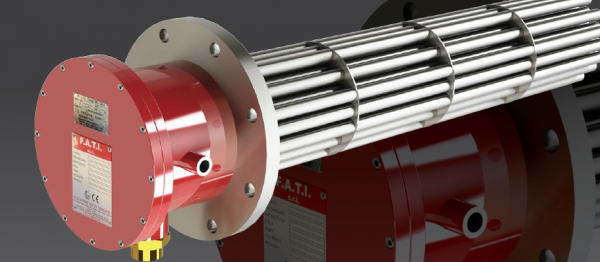

Cartridge Heater Atex

• Cartridge flanged and screwed heaters allow heating elements to be changed without decommissioning the tank • Certified for ATEX Hazardous Area Zone 1 & 2 • In accordance with API-614 standards • Certified II2G – Exd IIC T6-T3 Gb as per Standards CENELEC EN 60079-0 / 60079-1 • Maximum voltage up to 750 V • Maximum Power up to 500 kW • Elements available in copper, carbon steel, stainless steels 304L, 316L, 321, Incoloy®, Inconel® • Flange available in carbon steel or stainless steel
